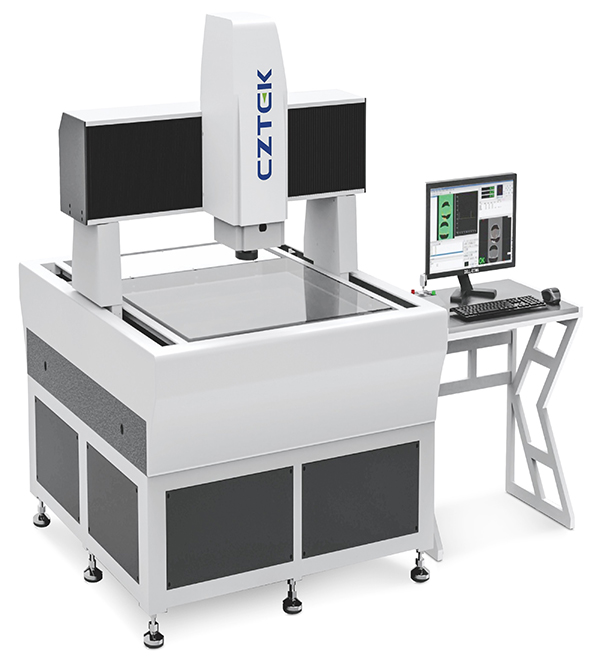

Featuring a bridge-moving configuration with the workpiece remaining stationary, this system integrates cutting-edge technologies from precision mechanics, measurement and control systems, software algorithms, and optical design. It is widely applied in large-stroke measurement fields such as die-cut backlight modules, optoelectronics, circuit boards, plastic frames, and etching. The system enables batch-integrated precision measurement with consistent and reliable performance, offering exceptional measurement solutions. Renowned for its high accuracy, fast speed, and stable performance, it stands as an industry benchmark.

Programmable five-ring, eight-zone LED surface cold light and parallel contour cold light endow the lighting system with greater adaptability to diverse measurement requirements. For specialized workpieces, varying lighting effects can be employed to highlight their features, enabling more precise data capture and achieving higher repeatability accuracy.
