Precision rectangular beam technology with aerospace-grade aluminum alloy ensures both stability and agility through lightweight design.

Three-axis granite construction provides high rigidity

deformation resistance, and outstanding stability.

Patented air-bearing system suppresses vibration and prevents adhesion

supporting high-speed and high-acceleration operation.

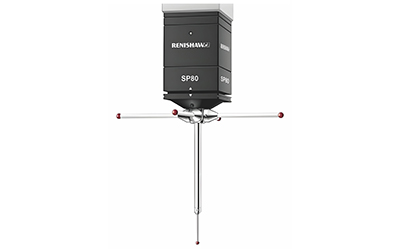

SP80

The SP80 combines extended probe reach with ultra-high precision measurement performance, achieving a scanning rate of up to 2000 points per second, making it the preferred scanning probe for numerous applications.
Equipped with probes up to 1000mm in length and weighing up to 500g (including star configurations unaffected by imbalance), the SP80 can access deep-set features on workpieces.

			5/6/4 7/10/7	9/12/8 9/15/8 9/20/8	12/15/10 12/22/10 12/30/10	15/22/12 15/30/12 15/20/14 15/33/14	20/33/15 20/40/15
Length measurement error Complies with GB/T16857.2	E0,MPE	μm	0.9+L/500	1.1+L/400	1.5+L/400	2.0+L/400	2.9+L/400
	E150,MPE	μm	1.1+L/400	1.3+L/400	1.7+L/400	2.3+L/400	3.1+L/400
R0 repeatability range Complies with GB/T16857.2	R0,MPL	μm	0.6	0.7	1.0	1.3	1.5
Scanning error Complies with GB/T16857.4	MPE THP	μm	1.9	1.9	1.9	2.2	3.0
	MPT THP	s	50	50	50	50	50
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	1.1	1.3	1.7	2.3	3.1
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	2.8	3.3	4.3	5.8	7.8
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	1.1	1.3	1.7	2.3	3.1
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	2.2	2.6	3.4	4.6	6.2

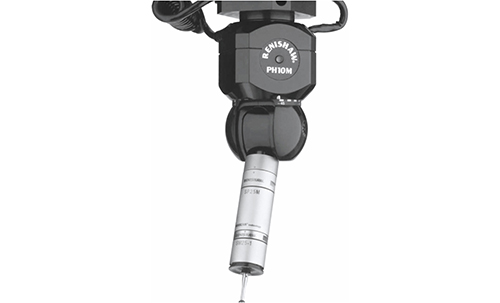

CLASSIC PH10M SP25M

Suitable for motorized repositionable probes, offering greater flexibility and shorter scanning cycle times, with scanning measurement rates up to 2000 points per second.
Ultra-compact multi-purpose scanning probe system with a diameter of just 25mm, featuring a dual-function probe for scanning and triggering.
Five scanning modules accommodate M3 styli ranging from 20mm to 400mm in length.

			5/6/4 7/10/7	9/12/8 9/15/8 9/20/8	12/15/10 12/22/10 12/30/10	15/20/10	15/22/12 15/30/12 15/33/14	15/20/14	20/33/15 20/40/15
Length measurement error Complies with GB/T16857.2	E0,MPE	μm	0.9+L/400	1.1+L/400	1.5+L/400	2.0+L/400	2.1+L/400	2.4+L/400	2.9+L/400
	E150,MPE	μm	1.1+L/400	1.3+L/400	1.7+L/400	2.3+L/400	2.3+L/400	2.6+L/400	3.1+L/400
R0 repeatability range Complies with GB/T16857.2	R0,MPL	μm	0.6	0.7	1.0	1.3	1.4	1.5	1.5
Scanning error Complies with GB/T16857.4	MPE THP	μm	1.9	1.9	1.9	2.2	2.2	2.5	3.0
	MPT THP	s	50	50	50	50	50	50	50
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	1.1	1.3	1.7	2.3	2.3	2.6	3.1
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	2.8	3.3	4.3	5.8	5.8	6.5	7.8
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	1.1	1.3	1.7	2.3	2.3	2.6	3.1
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	2.2	2.6	3.4	4.6	4.6	5.2	6.2

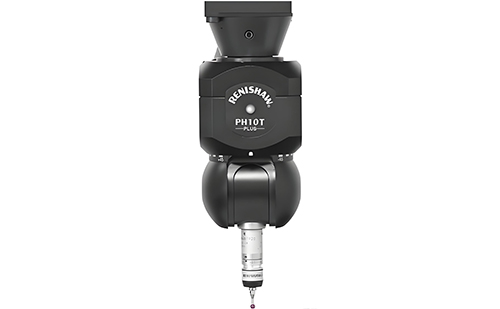

CLASSIC PH10T TP200

Perform in accordance with the standards published in GB/T 16857 (equivalent to ISO 10360/JJF 1064).
Trigger-type probe system for CNC coordinate measuring machines requiring high precision.
Maximum extension rod length: 300mm, Maximum probe length: SF/EO modules: 50mm steel to 100mm GF; LF modules: 20mm steel to 50mm GF.

			5/6/4 7/10/7	9/12/8 9/15/8 9/20/8	12/15/10 12/22/10 12/30/10	15/20/10	15/22/12 15/30/12 15/33/14	15/20/14	20/33/15 20/40/15
Length measurement errorMPE Complies with GB/T16857.2	E0,MPE	μm	1.3+L/400	1.5+L/400	1.8+L/400	2.4+L/400	2.4+L/400	2.6+L/400	3.1+L/400
	E150,MPE	μm	1.5+L/400	1.7+L/400	2.0+L/400	2.6+L/400	2.6+L/400	2.8+L/400	3.3+L/400
R0 repeatability rangeMPL Complies with GB/T16857.2	R0,MPL	μm	0.9	1.0	1.2	1.6	1.6	1.7	2.0
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	1.5	1.7	2.0	2.6	2.6	2.8	3.3
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	3.8	4.3	5.0	6.5	6.5	7	8.3
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	1.5	1.7	2.0	2.6	2.6	2.8	3.3
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	3.0	3.4	4.0	5.2	5.2	5.6	6.6

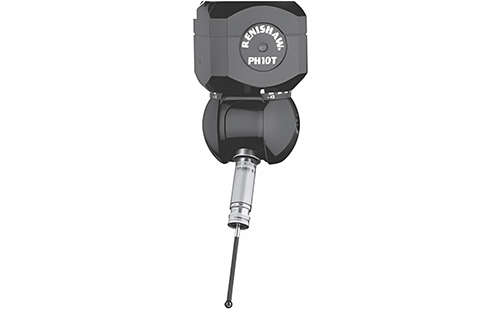

CLASSIC PH10T TP20

Trigger probe system for high-precision CNC coordinate measuring machines.
Maximum telescopic rod length: 300 mm, Maximum probe length: SF/EO modules: 50 mm steel to 100 mm GF; LF modules: 20 mm steel to 50 mm GF.

			5/6/4 7/10/7	9/12/8 9/15/8 9/20/8	12/15/10 12/22/10 12/30/10	15/20/10	15/22/12 15/30/12 15/20/14 15/33/14
Length measurement error Complies with GB/T16857.2	E0,MPE	μm	1.5+L/400	1.9+L/400	2.6+L/400	2.8+L/400	2.8+L/400
	E150,MPE	μm	1.7+L/400	2.1+L/400	2.8+L/400	3.0+L/400	3.0+L/400
R0 repeatability range Complies with GB/T16857.2	R0,MPL	μm	1.0	1.3	1.7	1.9	1.9
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	1.7	2.1	2.8	3.0	3.0
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	4.3	5.3	7.0	7.5	7.5
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	1.7	2.1	2.8	3.0	3.0
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	3.4	4.2	5.6	6.0	6.0

CLASSIC PH10M SP25M

Suitable for motorized repositionable probes, offering greater flexibility and shorter scanning cycle times, with scanning measurement rates up to 2000 points per second.
Ultra-compact multi-purpose scanning probe system with a diameter of just 25mm, featuring a dual-function probe for scanning and triggering.
Five scanning modules accommodate M3 styli ranging from 20mm to 400mm in length.

			5/6/4 7/10/7	9/12/8 9/15/8 9/20/8	12/15/10 12/22/10 12/30/10	15/20/10	15/22/12 15/30/12 15/20/14 15/33/14
Length measurement errorMPE Complies with GB/T16857.2	E0,MPE	μm	1.3+L/400	1.5+L/400	2.4+L/400	2.6+L/400	2.6+L/400
	E150,MPE	μm	1.5+L/400	1.7+L/400	2.6+L/400	2.8+L/400	2.8+L/400
R0 repeatability rangeMPL Complies with GB/T16857.2	R0,MPL	μm	0.9	1.0	1.5	1.5	1.5
Scanning error Complies with GB/T16857.4	MPE THP	μm	1.9	1.9	2.5	2.7	2.7
	MPT THP	s	50	50	50	50	50
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	1.5	1.7	2.6	2.8	2.8
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	3.8	4.3	6.5	7.0	7.0
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	1.5	1.7	2.6	2.8	2.8
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	3.0	3.4	5.2	5.6	5.6

100% DMIS core; enables import/export of DMIS programs;

Seamless integration with CAD data;

Supports IGES, STEP, DXF, STL, XYZ, and other formats;

Supports output to Q-DAS, DML, and other formats;

Supports direct read interfaces for CATIA, UG, PRO-E, SolidWorks, and Parasolid;

Intelligent inspection: Real-time simulation of inspection paths with automatic optimization;

Comprehensive and rapid tolerance calculation: Compliant with GB, ISO, Y14.5, ANSI, DIN, AGMA standards;

Diverse report output formats: Supports HTML, Excel, PDF, OUT, and TXT formats.
