Utilizes 3D line laser and wide-field imaging for integrated three-in-one measurement. Simultaneously measures height, flatness, and arbitrary planar dimensions, programmable into a single operation sequence. Rapidly captures and measures all two-dimensional planar dimensions of products. For small workpieces, eliminates the need for coordinate system setup and enables automatic alignment. High-magnification lens delivers high-precision measurement of minute dimensions. |
|
|
Utilizes 3D line laser and wide-field imaging for integrated three-in-one measurement.
Simultaneously measures height, flatness, and arbitrary planar dimensions, programmable into a single operation sequence.
Rapidly captures and measures all two-dimensional planar dimensions of products.
For small workpieces, eliminates the need for coordinate system setup and enables automatic alignment.
High-magnification lens delivers high-precision measurement of minute dimensions.
3D line laser rapidly scans and measures workpiece flatness and step height, provides judgment results, and exports reports.
| Model | APV 3020DCC | APV 4030DCC | APV 5040DCC | |
|---|---|---|---|---|
| Measuring Range (mm) | 300*200*200 | 400*300*200 | 500*400*200 | |
| Overall Dimensions (mm) | 730*670*1680 | 930*820*1680 | 1250*1160*1860 | |
| Workbench (mm) | Cast Iron Work Surface | 460*360 | 560*460 | 660*560 |
| Glass Work Surface | 339*239 | 439*339 | 539*439 | |
| Imaging and Measurement Systems | Load Capacity/Weight (kg) | 25/280 | 25/380 | 30/380 |
| Measurement Speed | MAX:250mm/S | |||
| Camera | 1 Hikvision 20MP industrial camera (wide field of view), 1 Hikvision 1.3MP industrial camera (narrow field of view) | |||
| Zoom Objective | Telecentric CCD lens 0.16X, fixed zoom lens 0.7X-4.5X | |||
| Video Magnification | Wide field of view 0.16X, narrow field of view 0.7X-4.5X | |||
| Working Distance | Wide field: 120mm, Narrow field: 90mm | |||
| Glass Scale Resolution | 0.5μm precision optical scale | |||
| Measurement Accuracy (μm) | Wide field XY axis ≤ (5 + L/200)μm, Narrow field XY axis ≤ (3 + L/200)μm (L = length of measured object) | |||

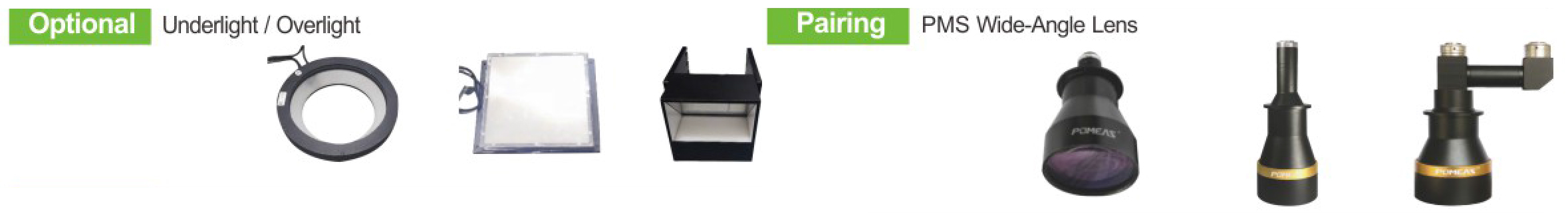

| Illumination | Programmable surface coaxial light and parallel plate light | |||
| Power Supply | 220V ±10% (AC) 50 Hz power supply requires reliable grounding: ground resistance <4 ohms | |||
| Operating Environment | Temperature 23℃ ±5℃, temperature change <2℃/hr, Humidity 30-80%, Vibration <0.002g, frequency <15Hz | |||
