GANTRY GANTRYCMM

It stands still like a mountain,yet moves with the certainty of a master draftsman's rule

Model	Measurement Range (mm)	External Dimensions (mm)	Total weight (kg)	Z-axis End Face Height H (mm)	Reserved platform height h (mm)
GANTRY 203015	2000×3000×1500	4040×5980×4545	9500	580	300
GANTRY 204015	2000×4000×1500	4040×6980×4545	10500
GANTRY 255015	2500×5000×1500	4540×7980×4545	12000
GANTRY 255020	2500×5000×2000	4540×7980×5545	12500	580	300
GANTRY 306020	3000×6000×2000	5040×8980×5545	14000
GANTRY 306025	3000×6000×2500	5040×8980×6545	14500

Performance Parameters
Spatial Travel Speed (mm/s)	400
Spatial Travel Acceleration (mm/s²)	800
Maximum Measured Acceleration (mm/s²)	350
Minimum Retraction Distance (mm)	2.0

(SP25/SP80) Scan Configuration Measurement Capability (SP25/SP80) Parameter Table
Maximum Number of Scan Points (PNTS/s)	2000
Maximum Scan Measurement Speed (mm/s)	50
Maximum Trigger Measurement Speed (mm/s)	50

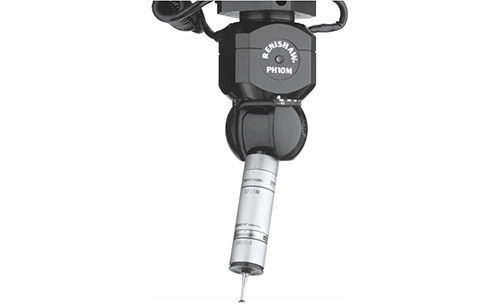

GANTRY PH10M SP25M

Suitable for motorized repositionable probes, offering greater flexibility and shorter scanning cycle times, with scanning measurement rates up to 2000 points per second.
Ultra-compact multi-purpose scanning probe system with a diameter of just 25mm, featuring a dual-function probe for scanning and triggering.
Five scanning modules accommodate M3 styli ranging from 20mm to 400mm in length.

			203015 204015	255015	255020	306020	306025
Length measurement error (MPE) Complies with GB/T16857.2	E0,MPE	μm	2.2+L/400	2.7+L/400	2.9+L/400	3.2+L/400	3.9+L/400
Length measurement error (MPE) Complies with GB/T16857.2	E150,MPE	μm	2.5+L330	3.0+L330	3.2+L330	3.5+L330	4.2+L330
R0 repeatability range MPL Complies with GB/T16857.2	R0,MPL	μm	1.5	1.5	1.5	1.5	1.5
Scanning error Complies with GB/T16857.4	MPE THP	μm	3.5	3.5	4.0	4.0	4.0
Scanning error Complies with GB/T16857.4	MPT THP	s	60	60	60	60	60
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	2.5	3.0	3.5	3.5	3.5
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	2.5	3.0	3.5	3.5	3.5
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	2.0	2.0	2.0	2.0	2.0
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	5.0	5.0	6.0	6.0	6.0

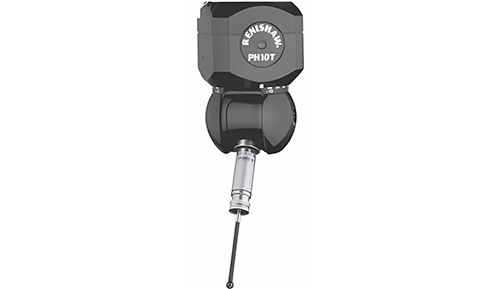

GANTRY PH10T TP200

Perform in accordance with the standards published in GB/T 16857 (equivalent to ISO 10360/JJF 1064).
Trigger probe system for high-precision CNC coordinate measuring machines.
Maximum telescopic rod length: 300 mm, Maximum probe length: SF/EO modules: 50 mm steel to 100 mm GF; LF modules: 20 mm steel to 50 mm GF.

			203015 204015	255015	255020	3060020	306025
Length measurement error (MPE) Complies with GB/T16857.2	E0,MPE	μm	2.7+L/400	3.4+L/400	3.4+L/400	3.9+L/400	3.9+L/400
Length measurement error (MPE) Complies with GB/T16857.2	E150,MPE	μm	3.0+L/330	3.7+L/330	3.7+L/330	4.2+L/330	4.2+L/330
R0 repeatability range MPL Complies with GB/T16857.2	R0,MPL	μm	1.8	1.8	1.8	1.8	1.8
Scanning error Complies with GB/T16857.4	MPE THP	μm	/	/	/	/	/
Scanning error Complies with GB/T16857.4	MPT THP	s	/	/	/	/	/
Single probe form measurement error Complies with GB/T16857.5	PFTU,MPE	μm	2.8	3.3	3.8	3.8	3.8
Multi-probe form measurement error Complies with GB/T16857.5	PFTE,MPE	μm	2.8	3.3	3.8	3.8	3.8
Multi-probe size measurement error Complies with GB/T16857.5	PSTE,MPE	μm	2.3	2.3	2.3	2.3	2.3
Multi-probe position measurement error Complies with GB/T16857.5	PLTE,MPE	μm	5.5	6.5	6.5	6.5	6.5

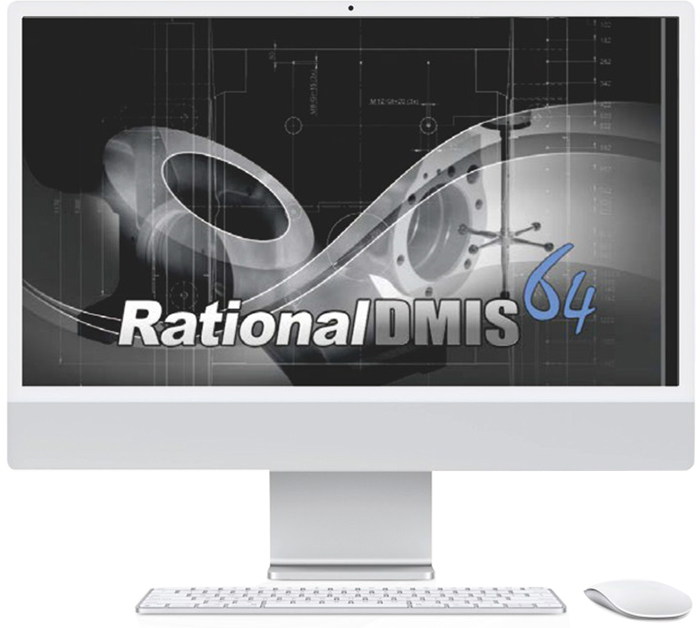

Key features of Rational DMIS include:

This system strictly adheres to ANSI, ISO, GB, and PTB standards, consistently employs the latest specifications and design concepts, and fully supports the internationally prevalent I++ control protocol.

Featuring a user-friendly, streamlined software interface, rapid single-user operation via drag-and-drop functionality, seamless integration with CAD data, and 100% graphical display from measurement to report generation, the software delivers comprehensive measurement solutions for diverse organizations.

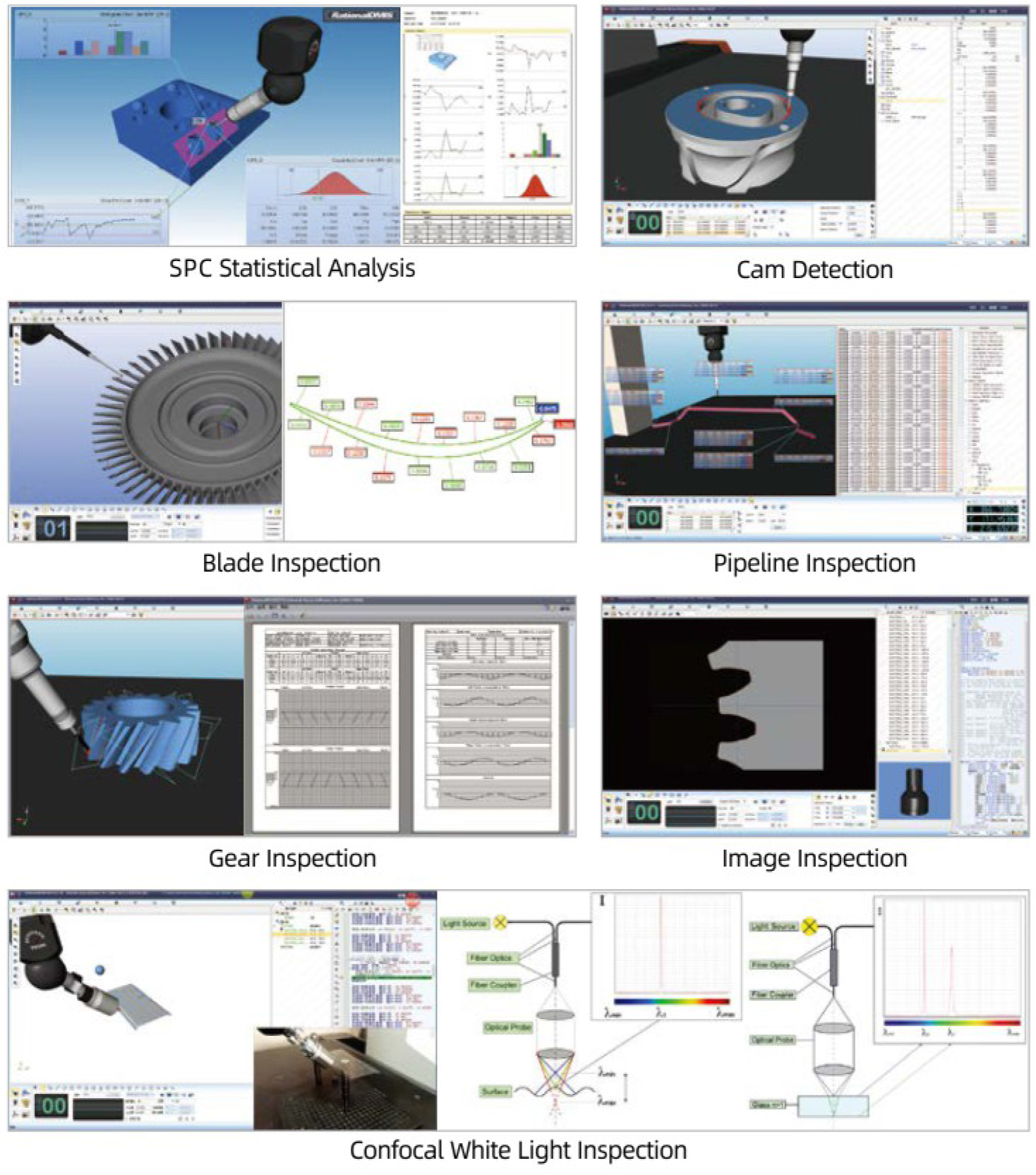

Rational DMIS software integrates CAD modules, thin-walled part modules, and scanning modules to meet customers' growing measurement needs.

100% DMIS core; enables import/export of DMIS programs;

Seamless integration with CAD data;

Supports IGES, STEP, DXF, STL, XYZ, and other formats;

Supports output to Q-DAS, DML, and other formats;

Supports direct read interfaces for CATIA, UG, PRO-E, SolidWorks, and Parasolid;

Intelligent inspection: Real-time simulation of inspection paths with automatic optimization;

Comprehensive and rapid tolerance calculation: Compliant with GB, ISO, Y14.5, ANSI, DIN, AGMA standards;

Diverse report output formats: Supports HTML, Excel, PDF, OUT, and TXT formats.

One Rational DMIS, a complete solution:
